Power：2.2 - 55 kW
FAD：240-6200 L/min
1) Class 0 certification

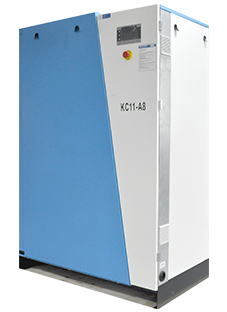

KUP's KC series oil-free compressor has TUV certification which is complied with ISO 8573-1:2010 Class-0 standard. It ensures that our customers experience the highest quality of air.

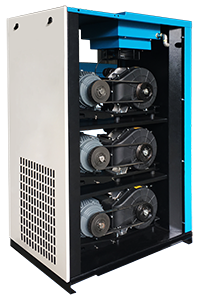

2) High efficiency scroll element
Air-cooled scroll compressor element offering proven durability and reliability in operation, in addition to solid efficiency.
3) High reliability motor
Totally enclosed air-cooled IP55 Class F motor, complying with IE3 efficiency standards.
4) Two stages of coolers
For maximum cooling performance, the large primary cooler is installed at an angle to make optimal use of the cooling airflow.
The secondary cooler too boasts proven greatness. It ensures a particularly low compressed air outlet temperature. The cooling fan start/stop automatically according to the discharge temperature, which can save energy for customer.
5) Smart Controller
Fitting with up to 10 scroll elements under one sound hood offers a key advantage: in this way the compressor can be used as a multiple system, which automatically adapts to the respective compressed air requirement on site. The advanced Smart Controller matches the required air demand, eliminating unload power consumption.
