Power: 2.2 - 45 kW
FAD: 240 - 4960 L/min

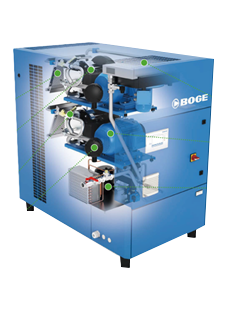

The core part of the BOGE EO series scroll compressor set includes one or more scroll air-end. Each scroll are-end is a twin-screw design consisting of a fixed screw and an eccentric rotary screw, which meshes but does not touch each other. The suction air is continuously fed into the meshing screw, resulting in pure pressure that is completely oil-free compressed air. At the same time, in order to further improve the compression efficiency, the unit adopts the design of secondary cooling. The product offers great flexibility in installation due to its unique model, compact structure, smooth operation, and low noise level. These low-maintenance products are ideal for installation in environments where high-quality, oil-free compressed air is required near the workplace, such as medical, pharmaceutical, food processing, laboratories, semiconductor, and new energy applications.
1) Oil-free
The scroll compressor has obtained the ISO8573 TUV Class 0 Rheinland certificate certification, which does not require the use of lubricating oil in operation, the screws do not rub against each other during operation, do not cause high temperatures, and all cooling systems are air-cooled, so they can produce 100% pure oil-free compressed air.
2) Silent
The closer the compressor is installed to the workplace, the higher the sound pressure. The scroll compressor operates silently, has ultra-low vibration, and is uniquely designed. Ideal for use in laboratories or hospitals.
3) Efficient
The whole system is equipped with the German Industry 4.0 version of the control system as standard, which can not only control multiple independent compressor heads in the unit for automatic matching operation, but also control the operation of other EO units, and fully meet the intelligent energy-saving and optimal operation management of the entire compression station building.
4) Easy maintenance
Long maintenance intervals (8 [10] bar: approx. 10,000 [5,000] operating hours), high-quality compressors also have the following characteristics: Long service life, quick and simple maintenance.
5) Integrated design, easy to install
BOGE EO series compressor unit adopts intelligent configuration mode, modular component design, can be built-in dryer, filter, gas detection and intelligent control system and other configurations, Optimized the size of the unit and can be placed in any workplace.
6) Environmental protection and energy saving
Equipped with a shell with sound insulation and rectification functions, it has obvious effects in reducing noise and heat dissipation, effectively reducing indoor temperature and extending the life of equipment. Frequency conversion model is optional.
